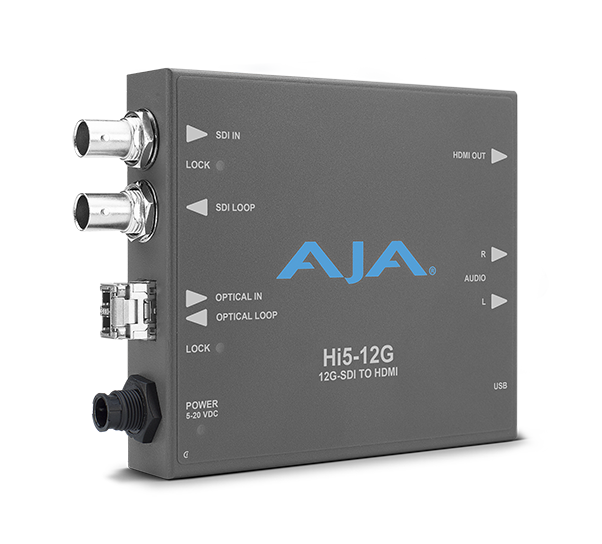

Hi5-12G-R 可将10公⾥里里远的带8路路嵌⼊入式⾳音频的 4K/UltraHD/2K/HD 12G-SDI单链路路输⼊入或Fiber LC信号源， 转换为带2路路或8路路⾳音频的HDMI 2.0输出。
具备时钟恢复SDI环路路输出的Hi5-12G-R可⽤用于更更简单的 监看或SDI信号传递。
• Convert 12G-SDI or 12G Fiber to HDMI 2.0b 4K/60 Output
• 1-Channel 12G Single Mode LC Fiber Receiver
• Supports Two Sample Interleave (2SI) 4K/UHD mapping
• Lock LEDs shows type of input source SD-SDI (Green) HD-SDI (Red) 3G-SDI (Amber) 6G-SDI (Purple) or 12G-SDI (Blue).
• embedded audio support 8-Channel 24-bit
• Analog Audio Output (2x RCA Style Connector)
• Fully supports HDMI v2.0b to the maximum 18 Gbps for 4K/UltraHD 50/59.94/60 4:2:2/4:4:4
• HDR support with HDR10 and HLG
• Configure via USB port and supplied Mini-Config software • DWP-U-R1 power supply included
• Five year warranty
